Discover Industry-Leading Hydraulic Dock Levelers
Affiliated Force Pro-Dock is a hydraulic dock leveler that is easy to operate, convenient to use and is the most cost efficient model over their lifetime. They are operated by a single push button control with a constant pressure feature to ensure safety throughout their cycle and are designed with a conformable piano hinge to compensate for any uneven truck beds. The Pro-Dock hydraulic dock leveler, is North American made, hydraulic components are reliable and are supported by a 5-year warranty. Main structure is supported by a 10-year warranty and the rear hinge and I-beams are supported with a lifetime warranty.
Affiliated Force Hydraulic & Mechanical Dock Levelers Models
Hydraulic Dock Levelers Capacity
30,000, 35,000, 40,000, 50,000, 60,000, 80,000 and 100,000 lbs. are the capacities available for hydraulic levelers.
Mechanical Dock Levelers Capacity
30,000, 35,000, 40,000, 50,000 lbs. are the capacities available for mechanical levelers.
Hydraulic Dock Levelers Sizes
There are the 3 standard sizes – but hydraulic can be built to any specific pit measurement.
Mechanical Dock Levelers Sizes
There are the 3 standard sizes – 6×6, 6×8, 7×8.
Safety & Compliance Features
All Hydraulic or Mechanical Dock Levelers sold by Affiliated Force have integrated slip-resistant surfaces, safety legs, and smooth edges help meet OSHA and CSA standards while reducing liability risks.
AFH66 ( HYDRAULIC 6X6)
available in 30,000 ~100,000 lbs. capacity
AFM66 (MECHANICAL 6X6)
available in 30,000 ~50,000 lbs. capacity

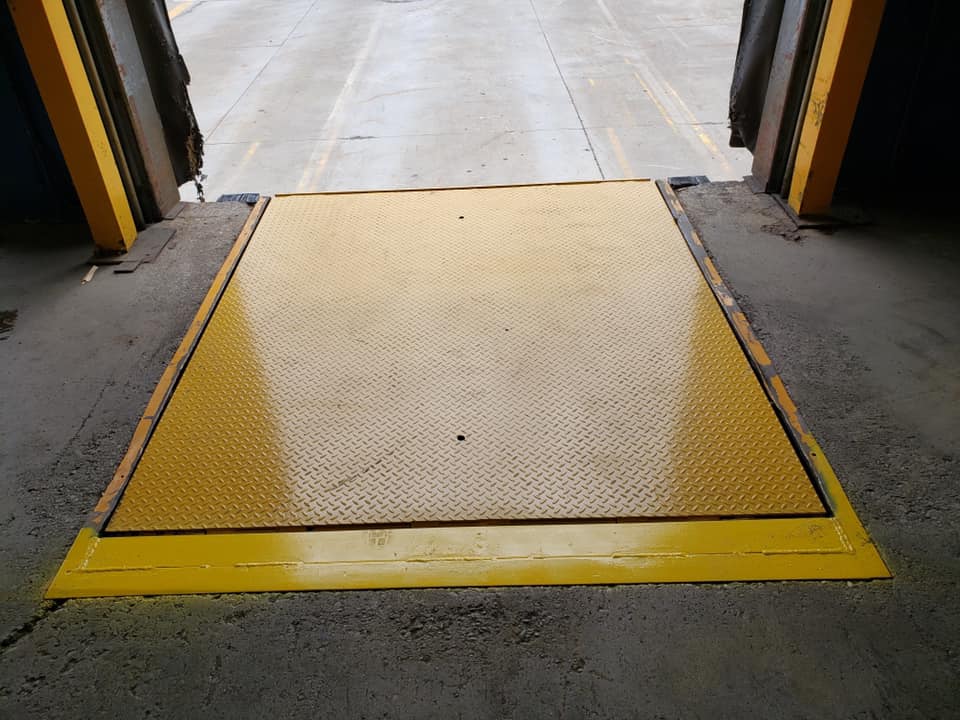

AFH68 (HYDRAULIC 6X8)
available in 30,000 ~100,000 lbs. capacity
AFM68 (MECHANICAL 6X8)
available in 30,000 ~50,000 lbs. capacity
AFH78 (HYDRAULIC 7X8)
available in 30,000 ~100,000 lbs. capacity
AFM78 (MECHANICAL 7X8)
available in 30,000 ~ 50,000 lbs. capacity
SPECIFICATIONS:
- 30,000 lb. capacity – standard unit specs
- 16” lip
- Brush weather seals
- 1-HP, any voltage powerpack
- Telescopic toe guards
- Single push button Control
- Velocity fuse
- V-Shaped maintenance stand
- Central support for 3 wheeled
forklifts - Double acting lip cylinder
OPTIONS:
- 30,000 lbs. up to 100,000 lbs. capacity for hydraulic levelers
- 30,000 lbs. up to 50,000 lbs. capacity for mechanical levelers
- 18” & 20” reach lip
- Remote wall mounted powerpack
- Safety lip
- Various size bumpers available
- Independent lip control
- Available in Yellow or Grey
- Pour in pan – available in standard sizes only
Enhancing Efficiency and Safety at Every Loading Dock
Discover how Affiliated Force’s dock levelers tackle key warehouse challenges, delivering safety, speed, and cost savings.
Reduce Trailer Damage and Labor Strain
Our dock levelers create smooth transitions, minimizing equipment wear and easing manual handling for faster, safer loading.
Hydraulic Models or Edge of Dock Models
Select the ideal leveler type to extend equipment life and cut maintenance costs while meeting your facility’s unique needs and space requirements.
Ensure Compliance and Maximize Throughput
Built with OSHA and CSA safety features, our levelers reduce liability risks and boost operational efficiency at your dock.
Enhance Your Dock Efficiency Now with an Edge of Dock Solution
Edge of dock levelers improve safety and productivity. Comes complete with a fully hydraulic 1HP power unit (all voltages available).
Available in both mechanical and hydraulic with 30,000 lbs. capacity. Sizes include 66″, 72″ and 84″.
- All edge of docks are sold with VB410-11FF bumpers
- Total projection of +/-17″
- High tensile steel
- Front and rear bumper hinge
- 15″ standard lip
- Yellow only
- Transition/lag plate
Enhance Your Dock Efficiency Now
Discover how our dock levelers improve safety and productivity. Learn more about options tailored to your warehouse needs and request a consultation today.
